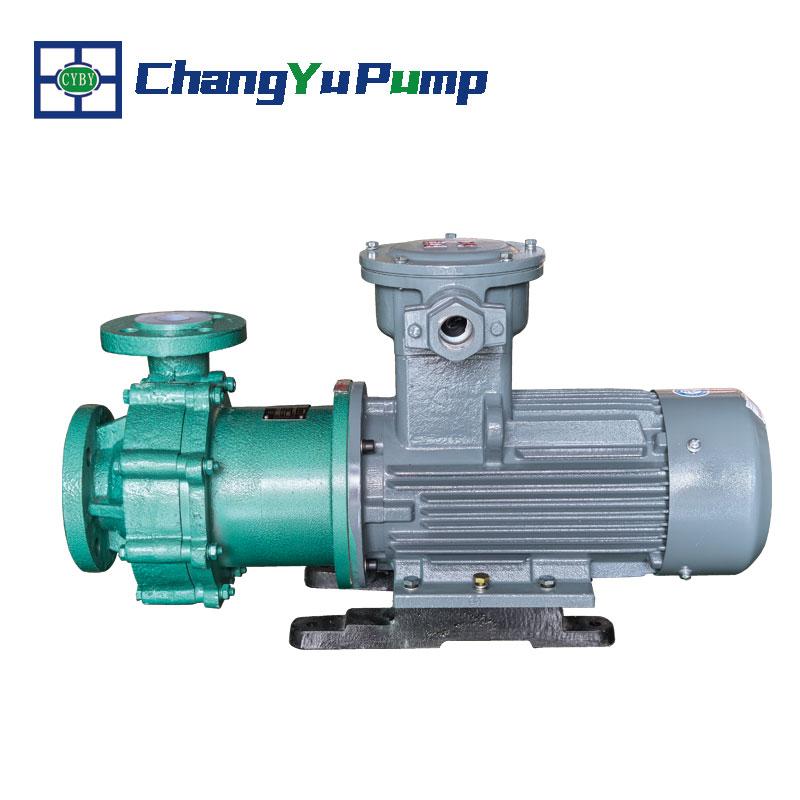

CYQ-High Temperature Resistant Sulfuric Acid Magnetic Drive Pump

CYQ-High Temperature Resistant Sulfuric Acid Magnetic Drive Pump

Sulfuric Acid Magnetic Drive Pump is lined with fluoroplastic (PFA, FEP) and can withstand sulfuric acid of any concentration within -20-180℃.

  • Flow Range :

    0.8~400m³/h
  • Head Range :

    3~80m
  • Power :

    0.18~55Kw
  • Temperature :

    -20-180℃

CYQ-High Temperature Resistant Sulfuric Acid Magnetic Drive Pump

CYQ pumps have the following design features:

The flow part of CYQ sulfuric acid magnetic drive pump is made of fluoroplastics, which can continuously transport corrosive media such as acids, alkalis, strong oxidants, etc. of any concentration. The shaft seal is cancelled, and the indirect drive is used by magnetic coupling, which eliminates the trouble of dripping and does not pollute the use site. CYQ fluoroplastic magnetic pump has the advantages of compact structure, beautiful appearance, small size, low noise, and reliable operation.



Instructions for use

  • Sulfuric acid magnetic pump should be installed horizontally, not vertically. The pump body should not bear the weight of the pipeline. For special occasions where vertical installation is required, the motor must face upward.
  • When the suction liquid level is higher than the pump axis, open the suction pipe valve before starting. If the suction liquid level is lower than the pump axis, the pipeline needs to be equipped with a bottom valve.
  • The pump should be checked before use. The motor fan blades should rotate flexibly, without jamming or abnormal sounds, and all fasteners should be tightened.
  • Check whether the motor rotation direction is consistent with the magnetic pump steering mark.
  • After the motor starts, slowly open the discharge valve. After the pump enters the normal working state, adjust the discharge valve to the required opening.
  •
  • Before the pump stops working, close the discharge valve first and then cut off the power supply.

We can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please contact us!



FAQ

1.Which Pump is Used for Sulphuric Acid?

The best pumps for handling sulphuric acid are typically chemical process pumps designed with materials resistant to corrosion. Common types include diaphragm pumps, magnetic drive pumps, and positive displacement pumps. These pumps are usually made from materials like PTFE (Teflon), PVC, or 316 stainless steel to ensure safe and effective operation.


2.How to pump sulfuric acid?

To pump sulfuric acid, use a corrosion-resistant pump specifically designed for handling acids, such as a diaphragm or magnetic drive pump. Ensure the pump and all piping are made from materials like PTFE or PVC to prevent corrosion. Always follow safety protocols, including wearing protective gear, and ensure proper ventilation in the area. Before starting, check for leaks and ensure that the pump is primed correctly to avoid air locks.


3.Which material is most suitable for sulfuric acid pump?

The most suitable materials for sulfuric acid pumps are PTFE (Teflon), PVC, CPVC, and 316 stainless steel. These materials provide excellent resistance to corrosion and can handle the aggressive nature of sulfuric acid effectively, ensuring safe and efficient operation.


4.Why can't the magnetic pump run dry?

The primary reason that magnetic pumps cannot run dry is that they rely on the liquid medium for cooling and lubrication. In normal operating conditions, the liquid not only provides power but also reduces friction and heat generation between the internal components of the pump. If the pump operates without liquid, the internal components can become damaged due to overheating, especially the magnetic coupling and other critical parts, which may experience significant wear or failure. Additionally, the lack of liquid can cause the impeller to make direct contact with the pump casing, further exacerbating wear and potentially leading to rapid equipment failure. Therefore, to ensure the safe and effective operation of magnetic pumps, it is essential to avoid running them in a dry state.


5.How do you transport sulfuric acid safely?

To transport sulfuric acid safely, follow these guidelines:

  1. Use Appropriate Containers: Ensure that the acid is stored in corrosion-resistant, labeled containers specifically designed for hazardous materials.
  2. Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves, goggles, and protective clothing.
  3. Secure Transportation: Use a secure and stable vehicle equipped to handle hazardous materials, ensuring the containers are strapped down.
  4. Ventilation: Ensure proper ventilation in the transport area to avoid the buildup of fumes.
  5. Emergency Preparedness: Keep spill kits and neutralizing agents nearby in case of accidental leaks or spills.
  6. Follow Regulations: Adhere to local and international regulations regarding the transportation of hazardous materials.

By following these precautions, you can help ensure the safe transport of sulfuric acid.
