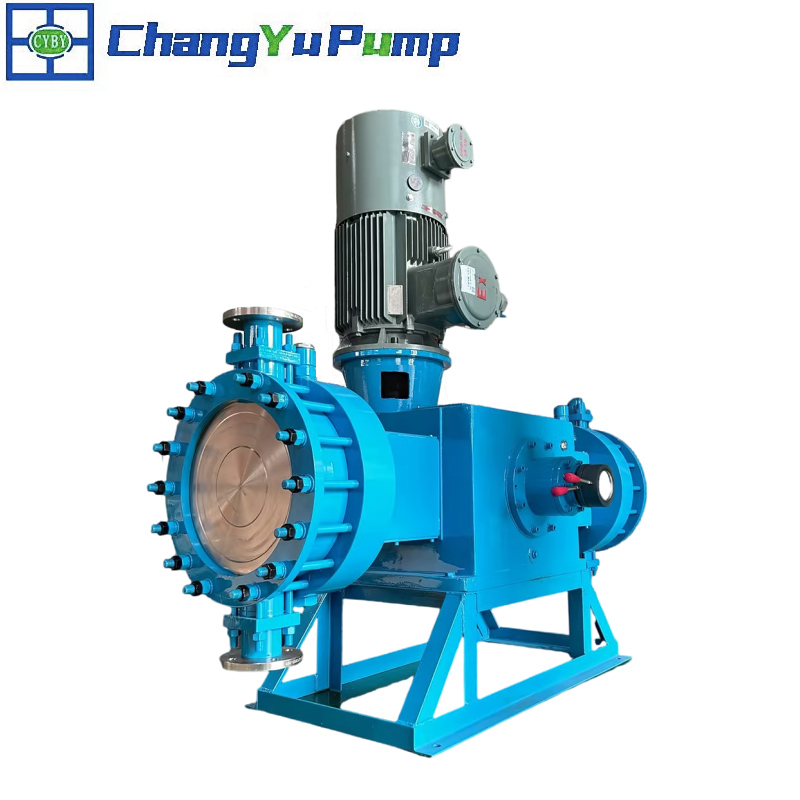

C2J-DM hydraulic diaphragm metering pump

Flow range:0-15000L/h.

Pressure range:0-50Mpa.

Adjustment range: 0 - 100% stepless adjustment, with steady - state accuracy of ±1%.

The flow rate can be adjusted either during shutdown or in the running state, and the adjustment mode can be selected as manual or variable - frequency.

Motor options: customized motors such as 220V, explosion - proof, variable - frequency, and variable - frequency explosion - proof ones.

Multiple materials: PVC, 304, 316, PVDF, PTFE, and PTFE - lined materials, etc., suitable for various materials.

Various special hydraulic end forms such as optional heat - preservation jacket are available.

The structure of the high - precision one - way check valve ensures the accurate metered dosing.

For the hydraulic diaphragm type, pressure selection or double - diaphragm leak detection (local/remote) alarm is available.

We can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please contact us!

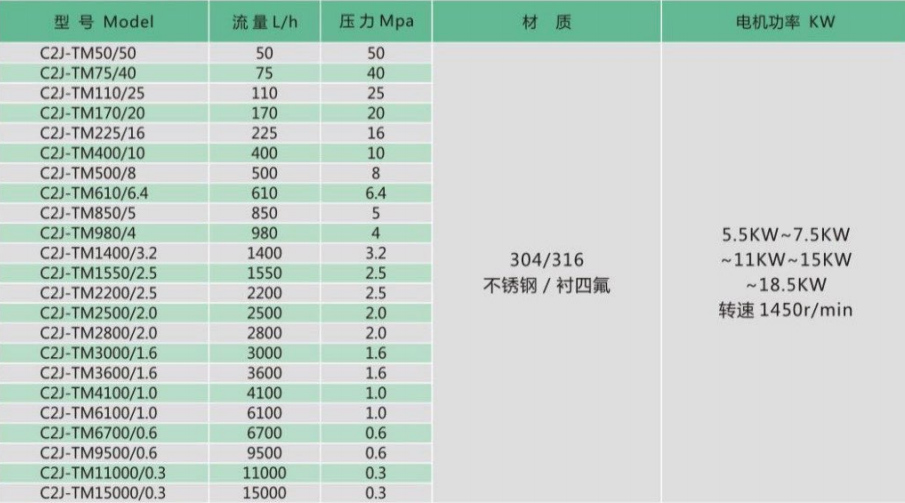

metering pump Specification

WHY CHOOSE US?

Rich Production Experience
30 years of production experience, serving 6,000 customers worldwide.
Professional Selection
Professional technicians select models and provide solutions.
Complete Specifications & Models
More than 20 series, thousands of models
Quality & Price
High quality with competitive price, big in stock, support OEM/ODM.

Changyu is a Chinese manufacturer specializing in the production of wear-resistant and corrosion-resistant chemical pumps. It has rich production experience, passed ISO9001, CE certification, and has 36 technical personnel specializing in the research and development of chemical pumps. Products are exported to more than 100 countries in Southeast Asia, the Middle East, Africa, South America, Eastern Europe, Central Asia and Europe, serving 6,000 customers, with an annual output of 15,000 chemical pumps.

FAQ

1.What is the working principle of hydraulic diaphragm metering pump?

When the pressure inside the regulating chamber increases, the elastic diaphragm will move towards the working chamber side, compressing the liquid in the working chamber and causing the pressure inside the working chamber to increase.

When the pressure inside the working chamber exceeds the outlet pressure of the medium, the liquid will flow out through the outlet.

When the pressure inside the regulating chamber decreases, the elastic diaphragm will move towards the regulating chamber side, the pressure inside the working chamber will decrease, thereby reducing the flow rate of the liquid at the outlet.

2.Why can't the hydraulic diaphragm metering pump run dry?

Hydraulic diaphragm metering pumps are widely used. In the chemical industry, they can accurately convey chemicals such as acids, alkalis, catalysts and auxiliaries, ensuring the quality of production. During the exploitation of oil and natural gas, they can transport chemical agents like demulsifiers and corrosion inhibitors, and also perform well in the transportation and processing stages. In the food and pharmaceutical fields, they are used to transport food raw materials, additives, drug ingredients, etc., meeting the requirements of hygiene and precision. When it comes to sewage treatment, they precisely control the dosage of flocculants, disinfectants and other agents, helping with the discharge up to standard and sludge treatment. In the power industry, they transport coal slurry, desulfurization agents, etc. in thermal power generation, and coolants and other special media in nuclear power. In addition, they also have important applications in the metallurgical industry, playing a key role in the stable production and high - quality development of various industries.

3.What are our services?

A.The contract products shall be provided on time, quality and quantity, and the service such as quality insurance in transit shall be undertaken by the supplier.

B.Equipment warranty period: the product quality assurance period is based on the qualified time of equipment installation and commissioning, and the warranty period is 12 months. during the warranty period, all the quality accidents caused by the equipment itself shall be borne by the seller. if the failure caused by misoperation or improper use by the user, the seller will give support to the spare parts and only charge the cost of the parts to be replaced.

C.If there are any problems in the on-site installation process after the product arrives, the supplier will formulate the installation plan according to the specific conditions of the user within 2 hours after receiving the notice, and guide the user to install and connect the equipment correctly.

D.The supplier provides round-the-clock service.
