Quality lined fluorine centrifugal pump is a corrosion-resistant pump manufactured using fluoroplastics such as F46 and PTFE, featuring excellent resistance to acids, alkalis, and high temperatures.
Flow Range :
3-1000m³/hHead Range :
5-80mPower :
1.5-110kwTemperature :
-20°C-100°CQuality lined fluorine centrifugal pump is specifically designed for the transportation of highly corrosive liquids such as strong acids, strong alkalis, and strong oxidizing agents. It's basic operating principle is the same as that of conventional centrifugal pumps, utilizing the centrifugal force generated by a rotating impeller to achieve liquid transportation. It can operate continuously under temperature conditions ranging from -20°C to 120°C, handling any concentration of sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, aqua regia, strong alkalis, strong oxidizing agents, organic solvents, reducing agents, and other highly corrosive media. It is widely applied in industries such as chemicals, metallurgy, electroplating, environmental protection, and pharmaceuticals.

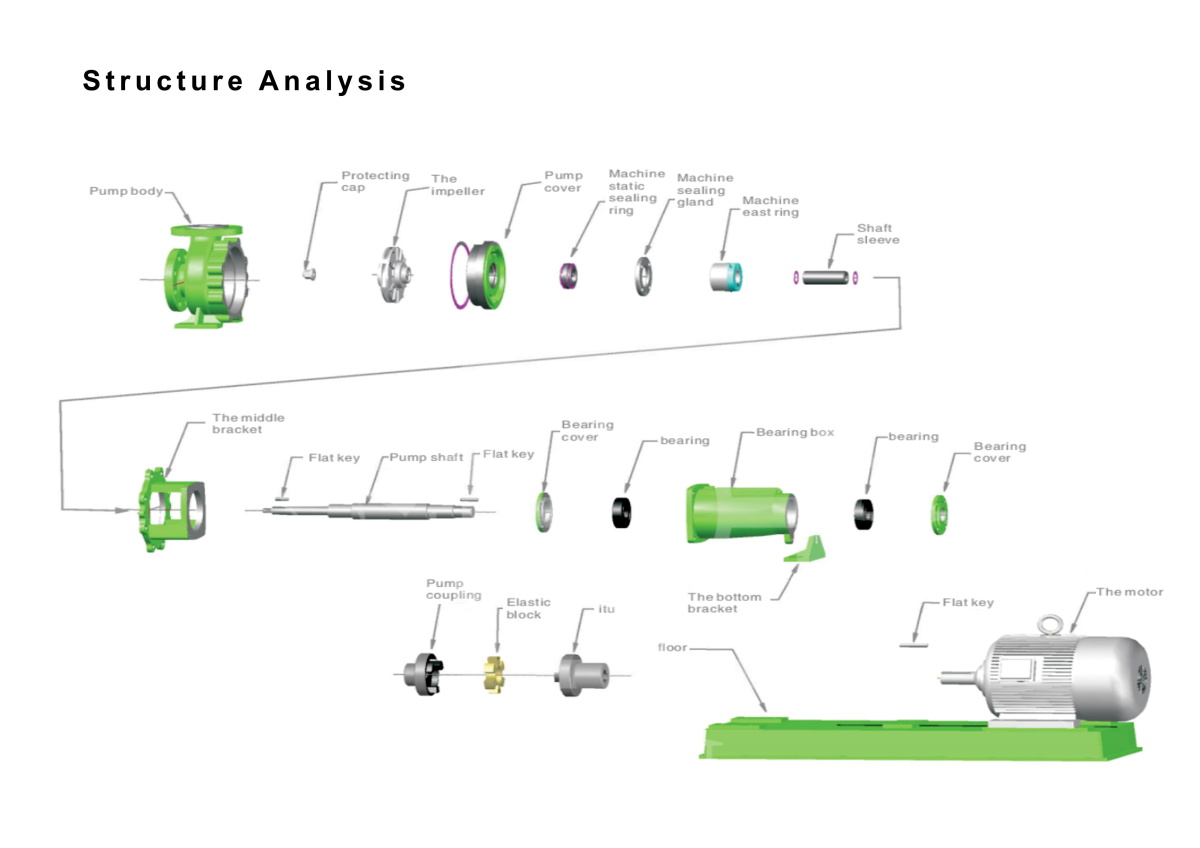

Fluorine Centrifugal Pump Parts
Quality lined fluorine centrifugal pumps primarily consist of a pump body, impeller, bearings, and sealing devices. Their compact overall structure offers excellent corrosion resistance, making them suitable for conveying various highly corrosive media.
The quality lined fluorine centrifugal pumps are driven by electric motors that cause impellers to rotate at high speeds. Under the action of centrifugal force, liquids are propelled from the pump inlet to the outlet, enabling continuous transportation. During this process, the velocity of the liquid is effectively converted into pressure energy in the discharge chamber, thereby improving transportation efficiency. This pump is constructed entirely from fluoroplastic materials, offering excellent corrosion resistance, high-temperature resistance, and wear resistance. It is particularly suitable for transporting various highly corrosive or high-temperature chemical media.
Quality lined fluorine centrifugal pumps are widely used in industries requiring reliable handling of corrosive and abrasive fluids. Mainly used for the following applications:
As professional industrial centrifugal pump manufacturers and suppliers, we specialize in the design and production of high-performance quality lined fluorine centrifugal pumps. ChangYu has a strong R&D and technical team, we offer OEM/ODM customized solutions tailored to your specific application needs, including magnetic pumps and semi-submersible pumps, etc.. Whether you require resistance to strong acids, alkalis, or high-temperature corrosive media, we can configure the pump with the most suitable materials and components based on your working conditions. For accurate technical solutions and expert support, please feel free to contact us!
What is Centrifugal Pump? Parts, Working Principle and Types
Types of Centrifugal Pumps and How to Select
How Does a Horizontal Centrifugal Pump Work
How Does a Centrifugal Pump Operate: Safety Operation Guide
Horizontal vs Vertical Centrifugal Pumps and How to Choose
The centrifugal seawater pump is a single-stage, single-suction, cantilevered centrifugal pump designed in accordance with ISO standards. This pump is specifically designed for the efficient handling of seawater, brackish water, saltwater, alkaline, and mildly corrosive liquids, as well as other fluids with physical and chemical properties similar to freshwater and free of solid particles.
Details
CYF is a single-stage single-suction centrifugal pump, which is manufactured according to international standards and combined with non-metallic pump technology.
Details
Quality lined fluorine centrifugal pump is a corrosion-resistant pump manufactured using fluoroplastics such as F46 and PTFE, featuring excellent resistance to acids, alkalis, and high temperatures.
Details
FGB Series Vertical Fluorine Lined Pipeline Centrifugal Pump is made of fluoroplastics, with excellent corrosion resistance. It is vertically designed and suitable for pipeline pressurization or circulation in limited space.
Details
CYF Acid centrifugal pump flow parts are all made of fluoroplastics, which can withstand almost all acid corrosion and are safe and leak-free.
Details
CYH series stainless steel chemical centrifugal pump is a single-stage single-suction cantilever centrifugal pump. Its rated performance points and dimensions are marked according to the international standard IS02858-1975 (E). It is an energy-saving product that replaces the F type corrosion-resistant pump. This series of chemical centrifugal pumps is designed according to the performance, technical requirements and test methods of energy-saving pumps.
Details
The UHB-ZK desulfurization circulation pumps are specifically engineered for demanding applications like flue gas desulfurization, utilizing steel-lined plastic construction with turtle-shell mesh lining technology. This design achieves secure anchoring of the plastic lining by welding a turtle shell mesh to the metal pump casing, effectively preventing cracking, deformation, or detachment of the lining. This design significantly enhances the quality stability and service life of lined corrosion-resistant pumps during long-term operation.
Details
The CYF Series Hydrochloric Acid Transfer Centrifugal Pump is specifically designed for corrosive environments. It is widely used in chemical, petroleum, pharmaceutical, dyeing, metallurgical, papermaking, and food industries, serving as an ideal solution for the safe and efficient transfer of corrosive media.
Details
